ElevenLabs voice agents can search the web mid-conversation using Exa as a webhook tool. When the agent decides it needs current information, ElevenLabs makes an HTTP POST directly to Exa’s /search endpoint — no server or middleware required on your side. There are two ways to connect Exa to ElevenLabs:
ApproachSetupFlexibility
Webhook tool (recommended)Configure via API or dashboardFull control over search params, content options, and headers
Built-in Exa integration (alpha)One-click in ElevenLabs dashboardSimpler but limited configuration
This guide covers the webhook tool approach, which gives you full control over how Exa is called. Everything below can also be done through the ElevenLabs dashboard UI — but the API examples here are designed to be agent-friendly, so you can feed this page to a coding agent and have it deploy the integration for you.

​
How it works

  1. User speaks to the voice agent
  2. The LLM decides to call web_search based on the tool description
  3. ElevenLabs POSTs to https://api.exa.ai/search with headers and body you configured
  4. LLM-determined params (the search query) get merged with your constant values (type, numResults, contents)
  5. Exa results flow back to the LLM, which responds conversationally
No server, no callback URL, no listener. ElevenLabs is the HTTP client calling Exa directly. Tool calls have a 20-second timeout.

​
Prerequisites

Get your Exa API key

​
Get started

1

Create the webhook tool

Use the ElevenLabs Create Tool API to register a webhook tool that points to Exa’s search endpoint.The key concept: properties with constant_value are fixed (sent on every request), while properties with description are determined by the LLM at runtime.
bash
curl -X POST "https://api.elevenlabs.io/v1/convai/tools" \
  -H "xi-api-key: $ELEVENLABS_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "tool_config": {
      "type": "webhook",
      "name": "web_search",
      "description": "Search the web using Exa. Use this when the user asks anything that needs current or factual information.",
      "api_schema": {
        "url": "https://api.exa.ai/search",
        "method": "POST",
        "request_headers": {
          "x-api-key": "YOUR_EXA_API_KEY",
          "Content-Type": "application/json",
          "x-exa-integration": "elevenlabs"
        },
        "request_body_schema": {
          "type": "object",
          "properties": {
            "query": {
              "type": "string",
              "description": "Natural language search query. Be specific."
            },
            "type": {
              "type": "string",
              "constant_value": "instant"
            },
            "numResults": {
              "type": "integer",
              "constant_value": 5
            },
            "contents": {
              "type": "object",
              "properties": {
                "highlights": {
                  "type": "object",
                  "properties": {
                    "maxCharacters": {
                      "type": "integer",
                      "constant_value": 4000
                    }
                  }
                }
              }
            }
          },
          "required": ["query"]
        }
      }
    }
  }'
This creates a tool where:
  • query — the LLM fills this based on conversation context
  • type: "instant" — uses Exa’s fastest search mode (~150ms)
  • numResults: 5 — returns 5 results per search
  • contents.highlights.maxCharacters: 4000 — returns highlighted snippets up to 4000 characters (token-efficient for voice)
Save the returned id — you’ll need it to wire the tool to an agent.
If you already have an agent, you can skip step 2 and add the tool to your existing agent in the ElevenLabs dashboard under Agent > Tools, or via the Update Agent API. The tool won’t do anything until it’s attached to an agent.
2

Create an agent with the tool

Create a conversational agent and attach the webhook tool by its ID.
bash
curl -X POST "https://api.elevenlabs.io/v1/convai/agents/create" \
  -H "xi-api-key: $ELEVENLABS_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "name": "Exa Search Assistant",
    "conversation_config": {
      "agent": {
        "prompt": {
          "prompt": "You are a helpful voice assistant with real-time web search powered by Exa. When users ask questions that need current information, use the web_search tool.\n\nGuidelines:\n- Search proactively for time-sensitive or factual questions.\n- Summarize results conversationally — do not read URLs aloud.\n- Cite sources naturally.\n- Keep responses concise — this is voice.",
          "tool_ids": ["YOUR_TOOL_ID"]
        },
        "first_message": "Hey! I can search the web for you in real-time. What would you like to know?"
      }
    }
  }'
The response includes an agent_id. Open the agent in the ElevenLabs dashboard to test it:
https://elevenlabs.io/app/conversational-ai/agents/YOUR_AGENT_ID
3

Embed the widget

Add the agent to any webpage with two lines of HTML:
html
<elevenlabs-convai agent-id="YOUR_AGENT_ID"></elevenlabs-convai>
<script src="https://unpkg.com/@elevenlabs/convai-widget-embed" async></script>

​
Full Python example

This script creates both the webhook tool and agent in one run:
python
import os
import requests

ELEVENLABS_API_KEY = os.environ["ELEVENLABS_API_KEY"]
EXA_API_KEY = os.environ["EXA_API_KEY"]
BASE = "https://api.elevenlabs.io/v1/convai"
HEADERS = {"xi-api-key": ELEVENLABS_API_KEY, "Content-Type": "application/json"}

# 1. Create webhook tool
tool_resp = requests.post(f"{BASE}/tools", headers=HEADERS, json={
    "tool_config": {
        "type": "webhook",
        "name": "web_search",
        "description": (
            "Search the web using Exa. Use this when the user asks anything "
            "that needs current or factual information."
        ),
        "api_schema": {
            "url": "https://api.exa.ai/search",
            "method": "POST",
            "request_headers": {
                "x-api-key": EXA_API_KEY,
                "Content-Type": "application/json",
                "x-exa-integration": "elevenlabs",
            },
            "request_body_schema": {
                "type": "object",
                "properties": {
                    "query": {
                        "type": "string",
                        "description": "Natural language search query. Be specific.",
                    },
                    "type": {"type": "string", "constant_value": "instant"},
                    "numResults": {"type": "integer", "constant_value": 5},
                    "contents": {
                        "type": "object",
                        "properties": {
                            "highlights": {
                                "type": "object",
                                "properties": {
                                    "maxCharacters": {
                                        "type": "integer",
                                        "constant_value": 4000,
                                    }
                                },
                            }
                        },
                    },
                },
                "required": ["query"],
            },
        },
    }
})
tool_resp.raise_for_status()
tool_id = tool_resp.json()["id"]
print(f"Tool created: {tool_id}")

# 2. Create agent
agent_resp = requests.post(f"{BASE}/agents/create", headers=HEADERS, json={
    "name": "Exa Search Assistant",
    "conversation_config": {
        "agent": {
            "prompt": {
                "prompt": (
                    "You are a helpful voice assistant with real-time web search "
                    "powered by Exa. When users ask questions that need current "
                    "information, use the web_search tool.\n\n"
                    "Guidelines:\n"
                    "- Search proactively for time-sensitive or factual questions.\n"
                    "- Summarize results conversationally — do not read URLs aloud.\n"
                    "- Cite sources naturally.\n"
                    "- Keep responses concise — this is voice."
                ),
                "tool_ids": [tool_id],
            },
            "first_message": "Hey! I can search the web for you. What would you like to know?",
        }
    },
})
agent_resp.raise_for_status()
agent_id = agent_resp.json()["agent_id"]
print(f"Agent created: {agent_id}")
print(f"Dashboard: https://elevenlabs.io/app/conversational-ai/agents/{agent_id}")
Run it:
bash
export ELEVENLABS_API_KEY="your-key"
export EXA_API_KEY="your-key"
python elevenlabs_exa_webhook.py

​
Customizing search parameters

The webhook tool body schema maps directly to Exa’s search API. Here are common configurations:

​
Search type

Control the speed/quality tradeoff with the type constant:
TypeLatencyBest for
instant~150msVoice conversations (recommended)
auto~1sGeneral use
neural~1sSemantic/thematic queries

​
Content options

Choose how results are returned via the contents object:
json
{
  "contents": {
    "type": "object",
    "properties": {
      "highlights": {
        "type": "object",
        "properties": {
          "maxCharacters": {
            "type": "integer",
            "constant_value": 4000
          }
        }
      }
    }
  }
}
  • highlights — Token-efficient excerpts. Best for voice agents where you want relevant snippets without overwhelming the LLM context. Set maxCharacters to control total highlight length per result.
  • text — Full page markdown. Use when the agent needs complete page content. Set maxCharacters to limit length.
  • summary — LLM-generated summary of each page. Higher latency but provides synthesized content.
For voice agents, highlights with maxCharacters: 4000 is the recommended default — it balances relevance with response speed.

​
Filtering results

Add domain or date filters as constants:
json
{
  "includeDomains": {
    "type": "array",
    "constant_value": ["reuters.com", "apnews.com", "bbc.com"]
  }
}
json
{
  "startPublishedDate": {
    "type": "string",
    "constant_value": "2025-01-01T00:00:00.000Z"
  }
}

​
Number of results

Adjust numResults based on your use case. For voice, 3-5 results keep responses fast. For research-oriented agents, 10+ gives broader coverage.

​
Schema reference

ElevenLabs webhook tools use a JSON schema with these property types:
  • constant_value — Fixed value sent on every request. The LLM never sees or modifies it. Works for strings, numbers, booleans.
  • description — The LLM determines the value at runtime based on this description. Use for dynamic params like query.
  • Nested objects — Use type: "object" with properties to build nested structures like contents.highlights.

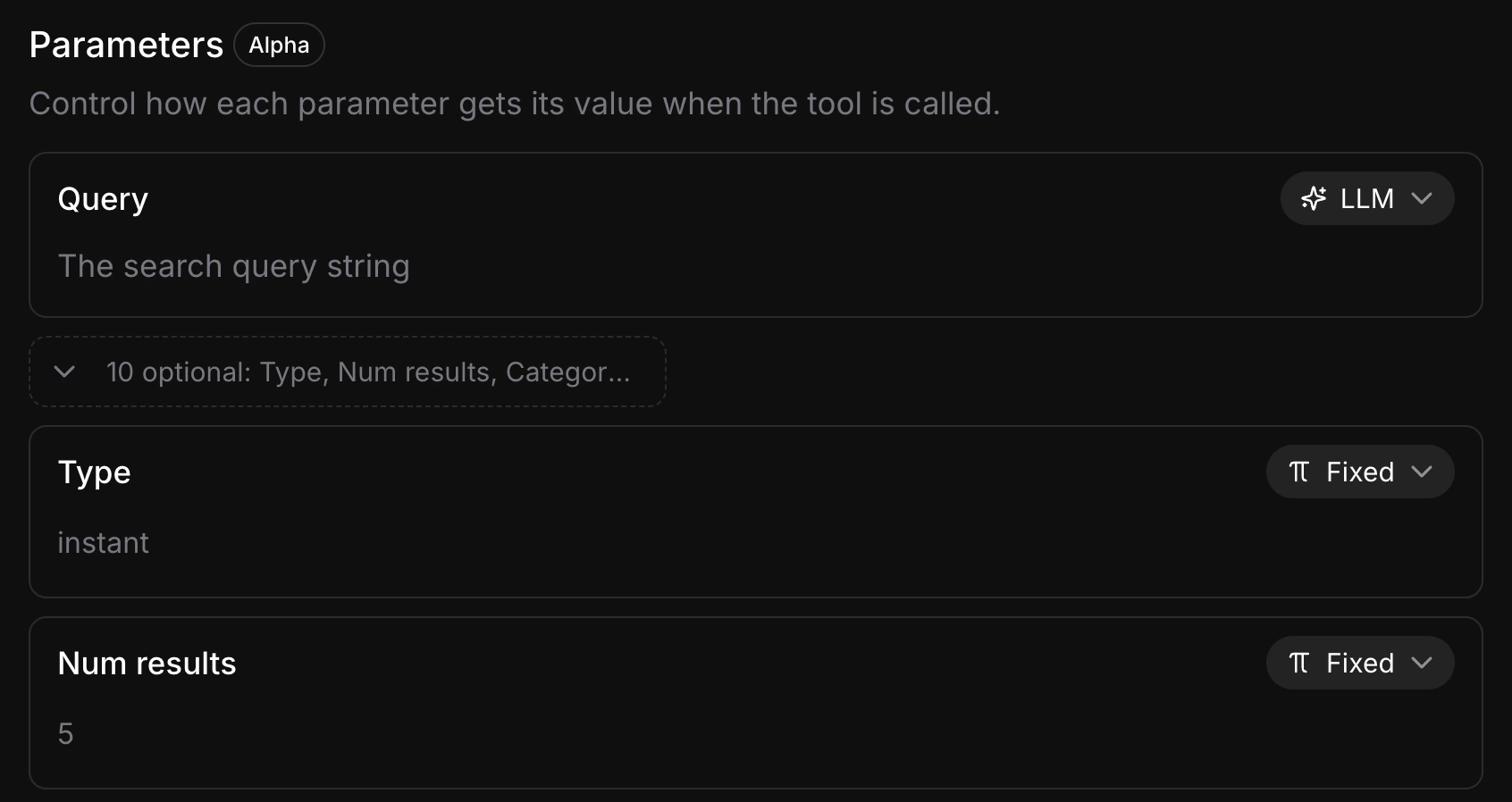

Each parameter has a mode toggle in the dashboard — Fixed or LLM:
ElevenLabs webhook tool parameter configuration showing Fixed vs LLM mode toggles
Parameters set to Fixed (marked with constant_value in the API) are sent as-is on every request. Parameters set to LLM (marked with description) let the model choose the value at runtime. Keep as many parameters Fixed as possible — every LLM-determined parameter adds a tool-calling step that increases response latency. For the full ElevenLabs webhook tool schema, see the ElevenLabs server tools documentation.

​
Built-in Exa integration (alpha)

ElevenLabs also offers a built-in Exa integration available in the agent dashboard under Tools > Integrations. This is simpler to set up, but customizing search parameters is harder compared to the webhook tool approach. For full control over search type, content options, and filtering, the webhook tool approach described above is recommended.
